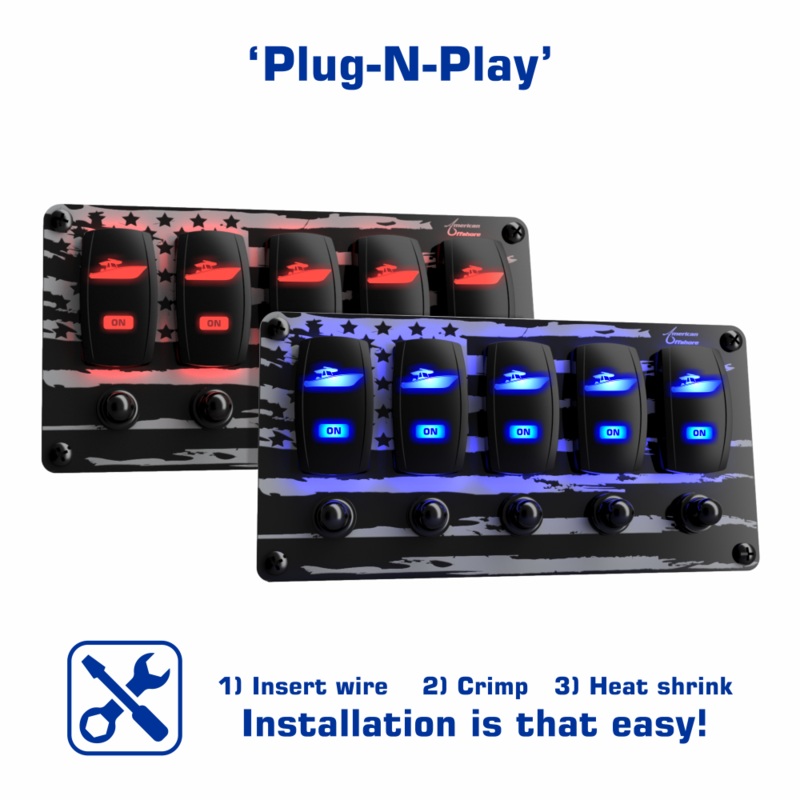

‘Plug-n-play’ completely wired 5 Gang On-Off Rocker Switch Panel
with circuit protection!

Over-engineered & manufactured for the incredibly harsh marine environment, this 5 Gang On-Off Rocker Switch Panel will upgrade the look & functionality of your boat, car, truck, RV, plane or whatever vehicle you have in a matter or minutes!

We designed this incredibly easy to install rocker switch panel exclusively for the weekend warrior who has very basic electrical knowledge, very little free time, anda very low budget.
Note: To keep costs lower for you this is not a ‘sitting on the shelf’ product. Will ship in approximately 3-5 business days once order placed.

Simply put this is the highest quality marine-grade rocker switch panel available on the market that’s easy to install and incredibly affordable, so whether you own a 47 Freeman or agolf cart this switch panel is for you!

You might be wondering,“How much space does it take up?”
We designed it forfolks with little room to work with so at only 7.25″ wide and 3.75″ tall you can install this switch panel in the tiniest of spaces! Just make sure you have at least 3.5″ of clearance behind your mounting area for the wiring ‘guts’ on the backside of the panel.

You might be wondering, “How does the rocker switch backlighting work?”
It’s very simple! The top LEDs (the boat icon) are illuminated by connecting 12v to the blue wire on the back of the switch panel. Thisis typically connected to your already existing backlighting circuit, such as gauges, accessories, or other already backlit items on your vehicle. You control when (or even IF) the top LEDs are illuminated.
The bottom LED (the ON icon) is illuminated when the individual switch is in the ON position.
Note: The bottom LED can also illuminate if you have a component back-feeding 12v to the switch, similar to a bilge pump connected to a float switch.

With four incredibly simple steps the electrical installation of this switch panel is an absolute breeze!
How? Completethe following one wire at a time after you mount the panel:

1. Strip your vehicle’s wire end .25″ (Don’t know how? Click HERE)
2. Insert your vehicle’s wire end into our heat shrink terminal
3. Crimp the heat shrink terminal (Don’t know how? Click HERE)
4. Heat shrink the heat shrink terminal (Don’t know how? Click HERE)

This 5 Gang On-Off Rocker Switch Panelfeatures:

GenuineCarlingTechnologies V-Series LED rocker switchbodies
(Available in Blue LED or RedLED). Certified to IP66/68 water proof ratings.

Laser etched rocker switch covers guaranteed to never peel or fade
Want to customize your switch panel’s rocker switch covers?
Click HERE or click the image below!

MP Push-to-Reset circuit breakers
w/ waterproof rubber boots
(10a, 10a, 15a, 15a, 15a)

1/8″ thick gloss black acrylic panel w/ laser etched distressed American Flaglogo
Guaranteed to never peel or fade – ever!
Yes, even in constant direct sunlight!

Completely wired with tinned copper UL wire (UL 1426/UL 1015 rated) & waterproof heat shrink connectors specifically designed for damp & nasty areas on boats.

(4) stainless steel black pan head screws.
