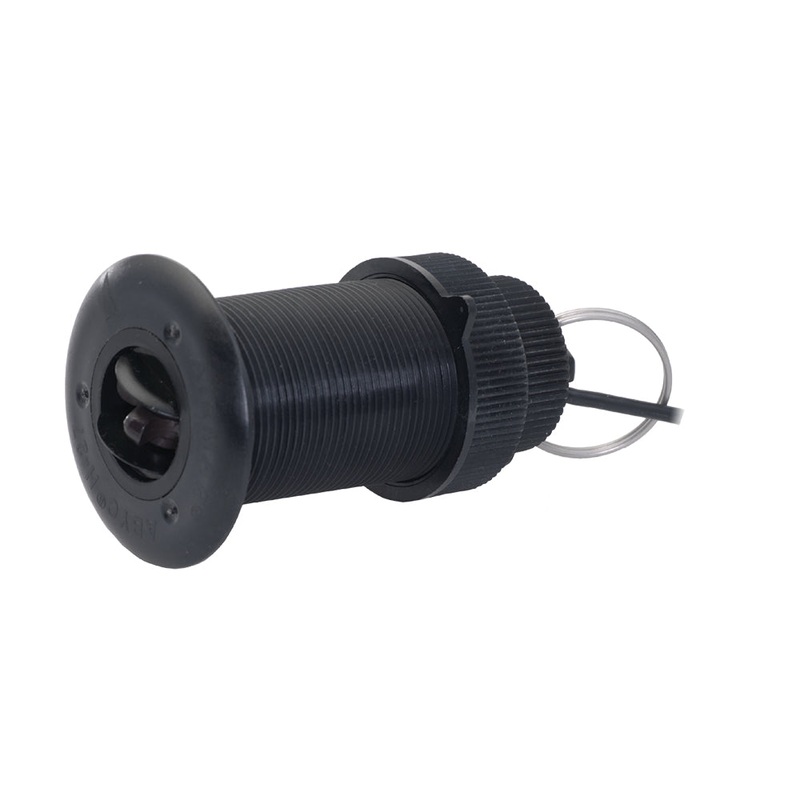

ST800PV-N2 NMEA 2000 Speed & Temp Transducer

The ST800 speed and temperature sensor process digital signals inside the thru-hull housing. Then this Smart Sensor sends data to a chart plotter, radar screen, or digital display in either analog or NMEA 2000 format. These low-profile units are nearly flush, minimizing drag with only 5 mm (3/16″) extending outside of the hull.

Features:

• Speed and fast-response water-temperature sensing
• Speed range from 2 to 45 knots (2 to 52 MPH)
• NMEA 2000 or NMEA 0183 analog output
• Retractable insert in a low-profile housing with a water valve
• Available in a plastic (P120) or bronze (B120) housing
• Airmar’s Smart Sensor technology

Specifications:

• Plastic: 0.7 kg (1.4 lb.)
  • Bronze: 1.3 kg (2.8 lb.)
• Hull Material: Plastic: Fiberglass or metal/Bronze: Fiberglass or wood
• Hole Diameter:51 mm or 2″
• Speed Range:2 to 45 knots (2 to 52 MPH)
• Water Temperature: Range: -10 to 40C (14 to 104F)/ Accuracy: 0.5C (1.8F)
• Pressure Rating:3 m (10′)
• Data: Output Protocol: NMEA 0183 or NMEA 2000/Update Rate: 1 time/s
• Power: Supply Voltage: 9 to 16 VDC/Supply Current: <200 mA/NMEA 2000 Load Equivalency Number (LEN): 2
• Standard Cable Length: NMEA 2000: 6 m (20′)/NMEA 0183: 9 m (30′)
• Includes:Blanking plug
• Certifications and Standards: CE, IEC60945
