Verado Autopilot Fitting Kit for MK2 Pumps

Verado steering system autopilot fitting kit for MKII Pumps 1, 2, 3, 4 & 5. Fitted with Verado O-Ring Face Seal fittings use don Verado steering systems.

Fitted hose kit designed for simplified Verado Autopilot installations, reducing the incidence of faulty field terminated hydraulic hoses and incorrect installation layouts.

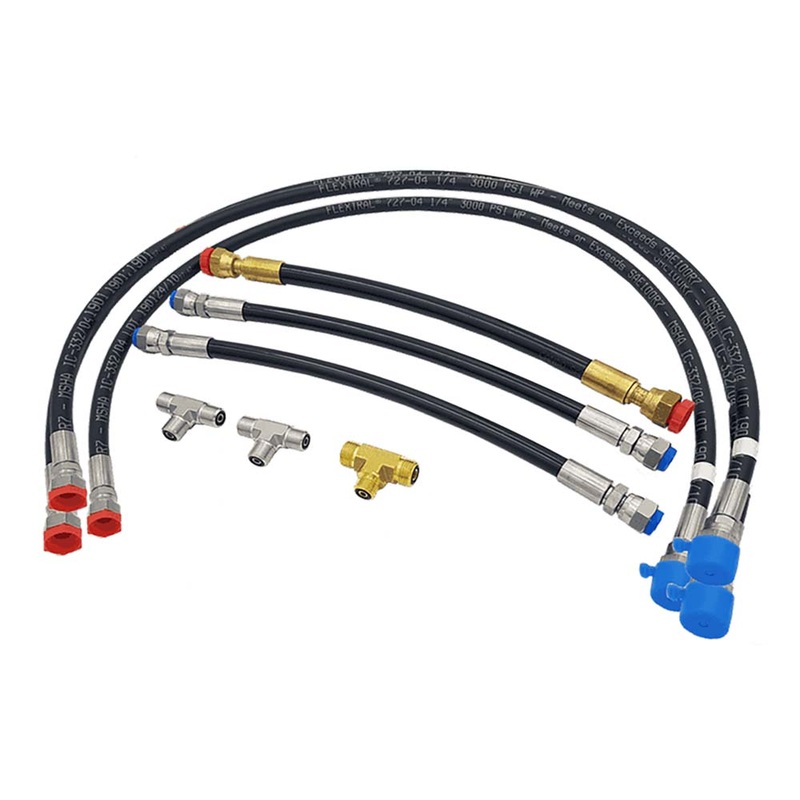

Kit Contains:

• 3 x Hose 3000 PSI max, 915 mm (36″), 9/16 UNF to 9/16 ORFS
• 2 x Hoses 3000 PSI max, 380mm (15), 9/16 ORFS to 9/16 ORFS
• 1 x Return Hose 3/8 2250 PSI max, 390mm (15.4),11/16 ORFS to 11/16 ORFS
• 2 x T Connectors: Stainless: 9/16 ORFS
• 1 x T Connector: Brass: 11/16 ORFS > 11/16 ORFS > 9/16 ORFS
